LED high bay light
| Name: | LED high bay light |

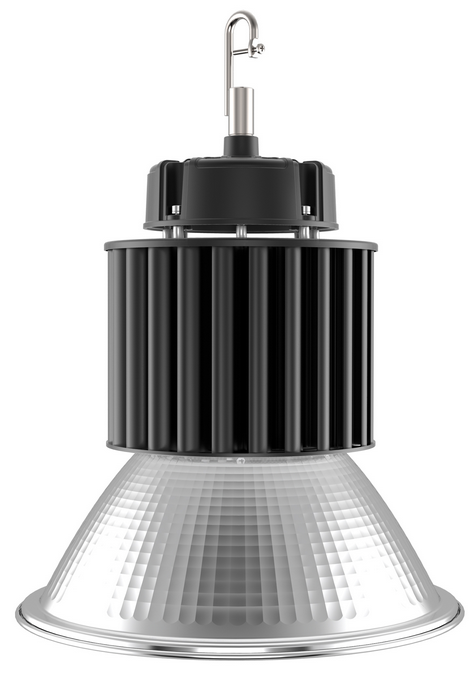

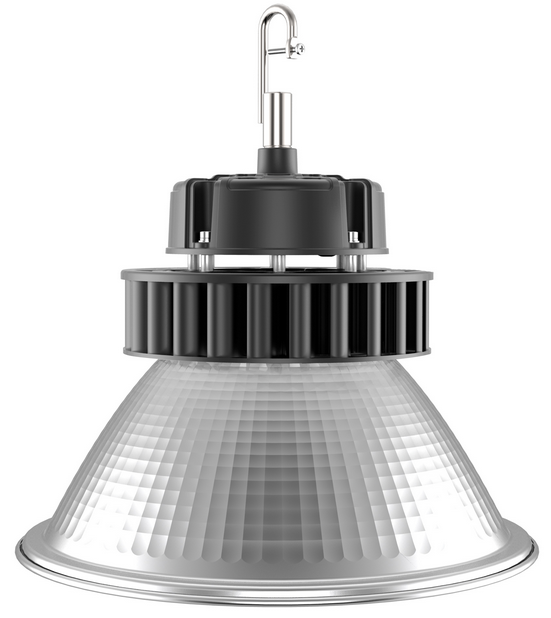

LED High Bay Light(60W-200W)
Product Overview

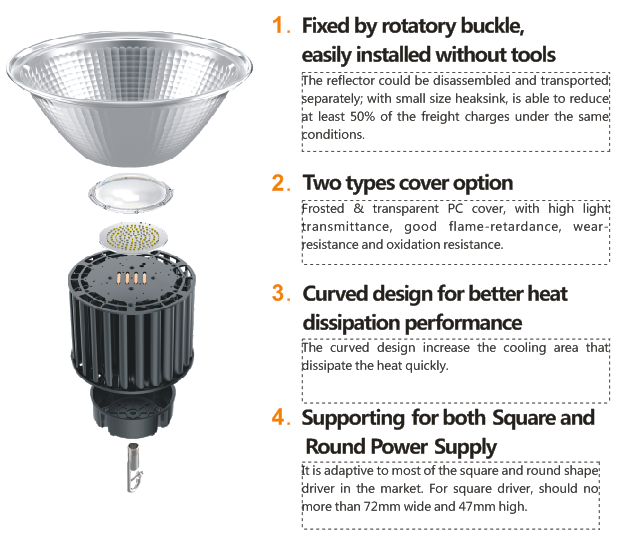

Product Features

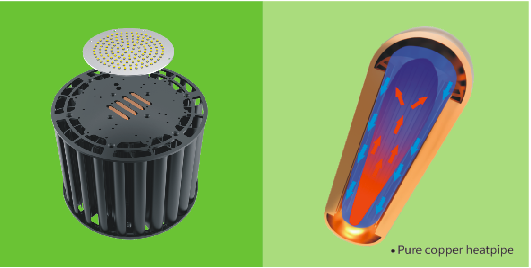

1.The HDT technology
Pure copper heatpipes directly touch the heat source
which can quickly transfer heat to the heatsink with the heat transfer rate over
200 times of the aluminum radiator.

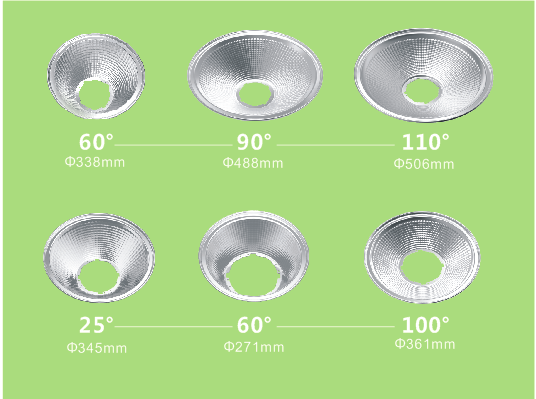

2.Different sizes refector options
25°,60°,90°,100°,110° totally six size of the scale-type
reflector which could effectively improves the lighting efficiency.

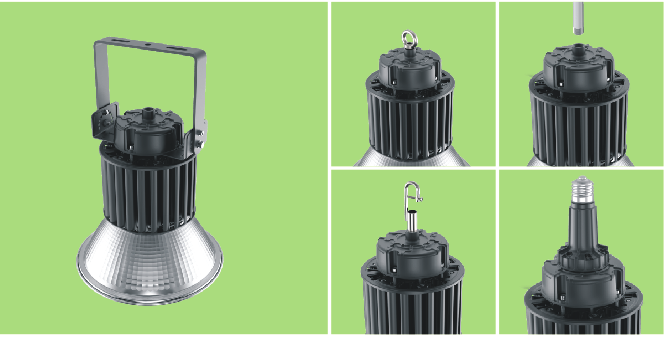

3.Five easy installation methods
Tube, Ring, Hook, E40 thread base, Adjustable bracket.
Parameter&Specification
Model: EHBL-60W
| Electrical specification Power: 60w Input Voltage: AC100-240V/277V,50HZ/60HZ DC:24V Maximum Current: AC 0.36A -120V,0.18A -240V DC 3.24A -12V,1.62A -24V Working Temperature: -40 ºC to +60 ºC Power Factor:> 0.90 Drive Efficiency: >90% |
Photometric specification Lumen output: Lumen tolerance +/- 5% 3000-4500k:6600lm 5000-6000k:6700lm 6000-7000k:6800lm CRI:Ra>=75 CCT: 3000-3500K 4000-4500k 5000-5500k 6000-6500k |

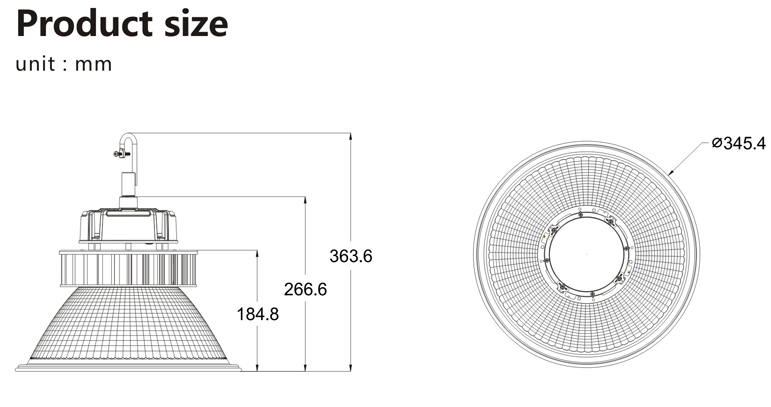

Mechanical specification IP Rating:IP54 Lifetim:>50000hours Heat Radiator: Anodized Aluminum Lens:Acrylic/PC Fixture Dimension: D345*H363.6MM Fixture Weight:2kgs |

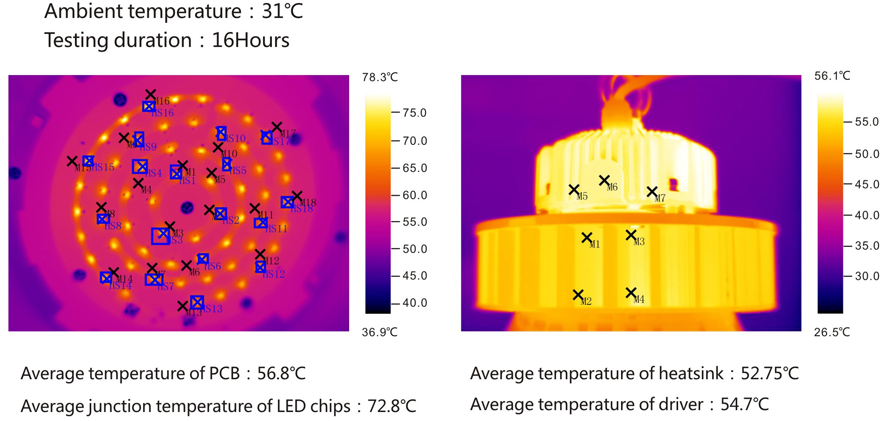

Thermal test

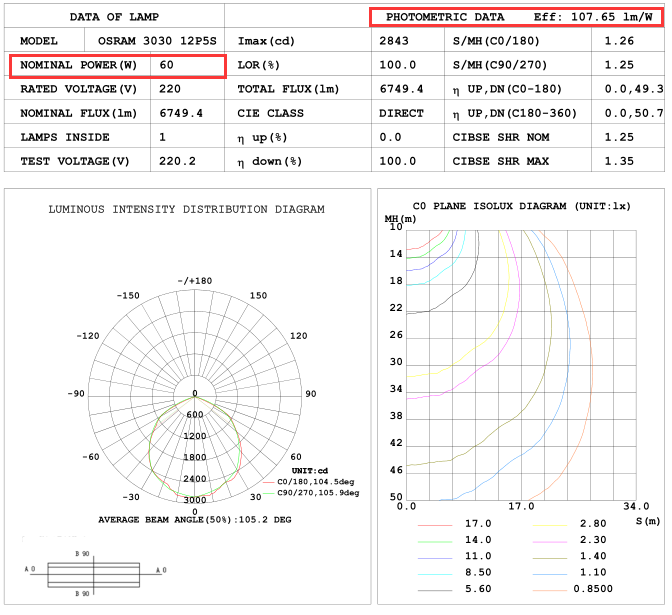

IES test
Power Options: 60W,100W,150W,200W are selectable.

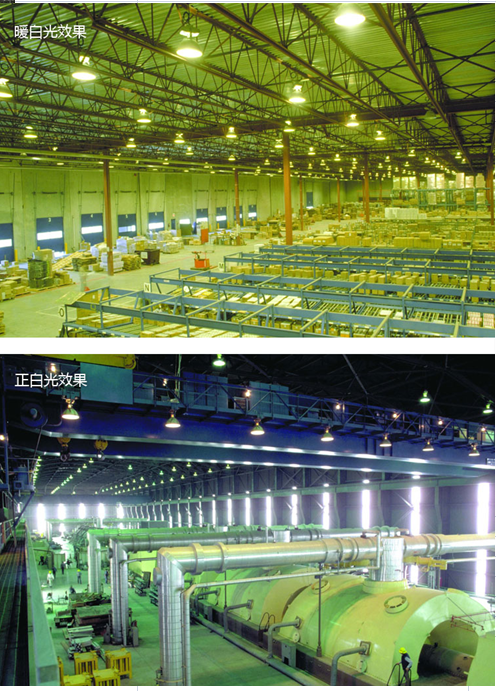

Product Application
Widely used for high bay lighting factories, workshops, warehouses, logistics centers,
exhibition halls, stadiums, shipyards, mines, highway toll stations,gas stations,
supermarkets, farmers markets and so on.
