LED gas station light
| Name: | LED gas station light |

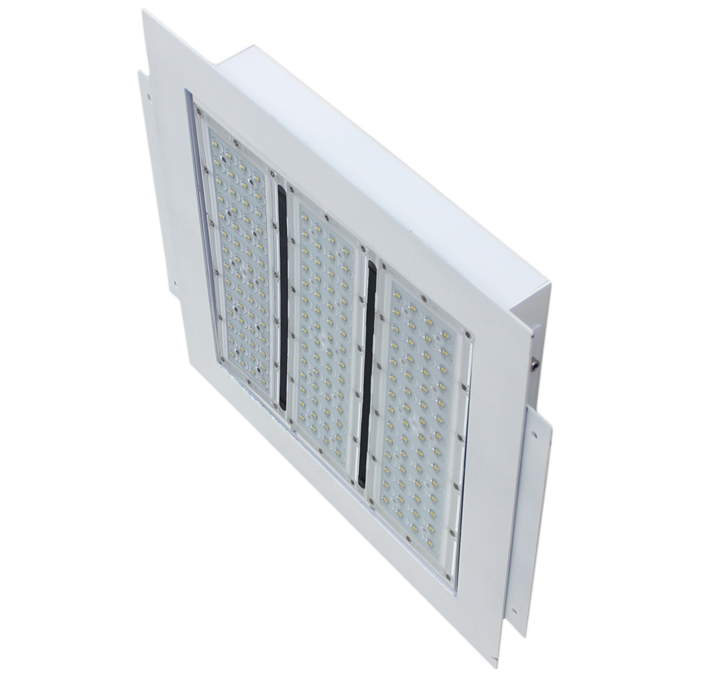

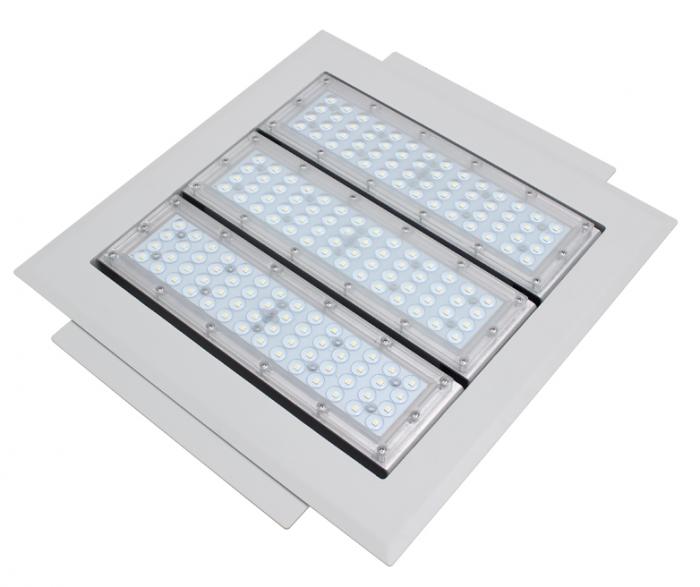

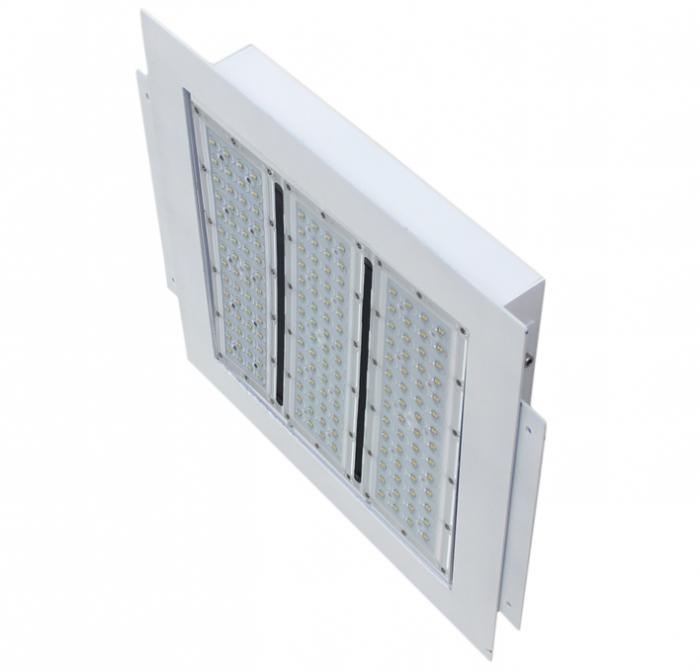

LED Gas Station Light
Product Overview
 |
 |
1.Full aluminum whole lamp radiator technology, perfect efficiently solve the problem of the led heat dissipation,
greatly extend the life of the light source.
2.Low energy design, maximum energy saving, long service life and low maintenance rate.
3.The prospective ultra-thin shape structural design, convenient to store, transport and maintenance .
Product Features

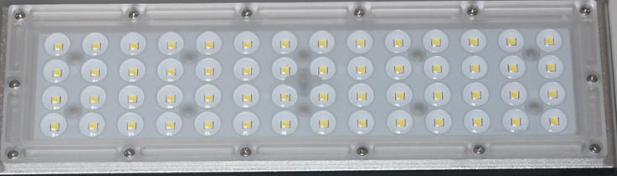

1.Modularization led structure,light output stability, long life time
2.Designed the rectangular light beam from each exquisite lens,high light efficency.
With high bright 110lm/w Osram/Philips chip, improve the brightness greatly.

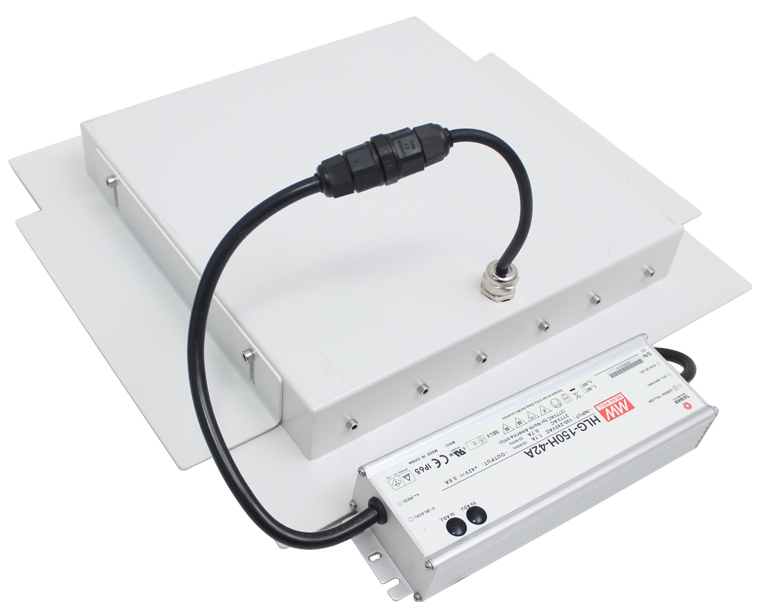

3.Utilizing MEAN WELL® high-end driver, great luminaire stability,
lifespan and optimal performance status.
Prameter&Specification
Model：ELG2-60W-100W
| Electrical specification Power:60w Input Voltage:AC100-277V Working Temperature: -40 ºC to +60 ºC Power Factor:> 0.90 Led quantity:112pcs |

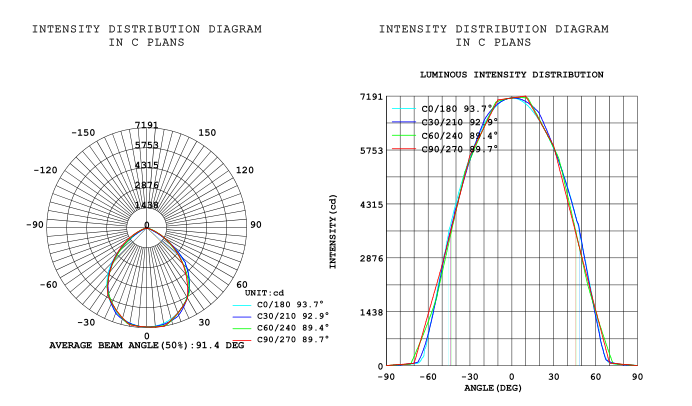

Photometric specification Lumen output: 100-110lm/w 3000-4000k:80-90lm/w 5000-6500k:100-110lm/w CRI:Ra>75 CCT: 2700-3500K 4000-4500k 5000-6500k 7000-7500k
|

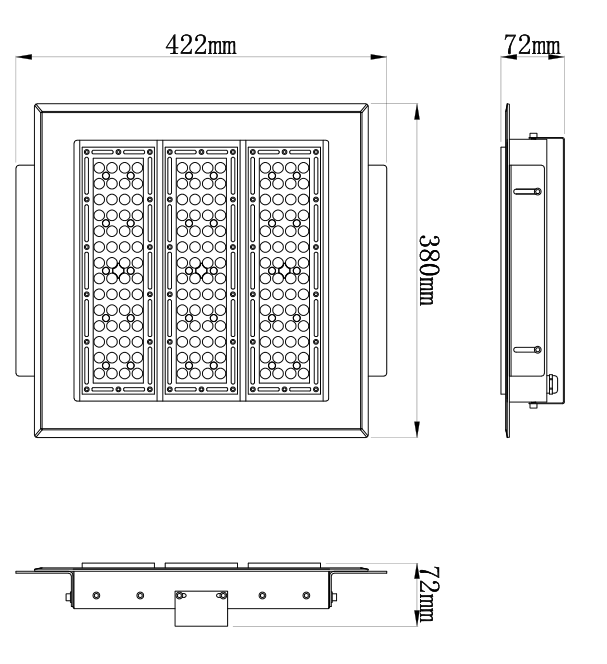

Mechanical specification IP Rating:IP65 Lifetim:>50000hours Heat Radiator:Aluminum Fixture Dimension: 327*380*110mm Fixture Weight:4.8kgs
|
Model：ELG3-90W-120W
| Electrical specification Power: 90w Input Voltage:AC100-277V Working Temperature: -40 ºC to +60 ºC Power Factor:> 0.90 Led quantity:168pcs |
Photometric specification Lumen output: 100-110lm/w 3000-4000k:80-90lm/w 5000-6500k:100-110lm/w CRI:Ra>75 CCT: 2700-3500K 4000-4500k 5000-6500k 7000-7500k |
Mechanical specification IP Rating:IP65 Lifetim:>50000hours Heat Radiator:Aluminum Fixture Dimension: 430*390*110mm Fixture Weight: 5.8kgs |
Model：ELG4-120W-200W
| Electrical specification Power: 160w Input Voltage:AC100-277V Working Temperature: -40 ºC to +60 ºC Power Factor:> 0.90 Led quantity: 224pcs |
Photometric specification Lumen output: 100-110lm/w 3000-4000k:80-90lm/w 5000-6500k:100-110lm/w CRI:Ra>75 CCT: 2700-3500K 4000-4500k 5000-6500k 7000-7500k |
Mechanical specification IP Rating:IP65 Lifetim:>50000hours Heat Radiator:Aluminum Fixture Dimension: 517*380*110mm Fixture Weight: 7.5kgs |

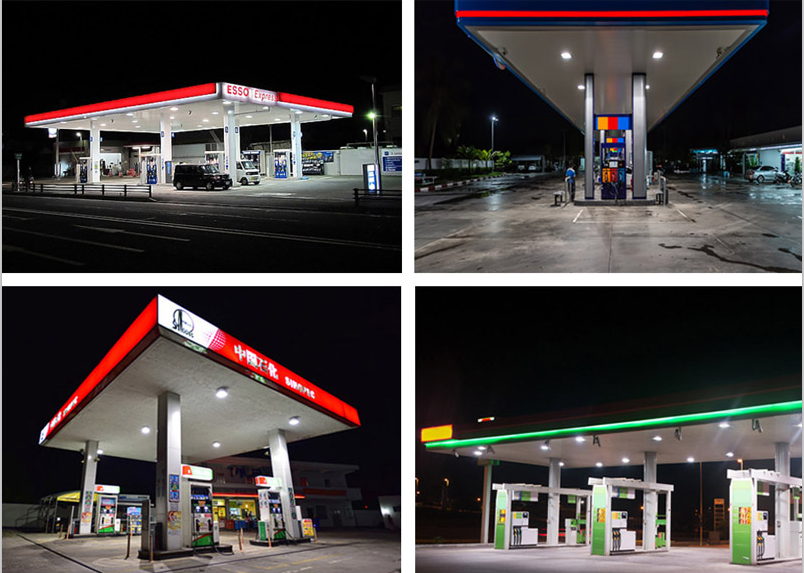

Product Application
1. Gas station
2. Tunnels
3. Airport
4. Parking lot
